EN877 Cast Iron Pipe SML BML KML TML

EN877 Cast Iron Pipe BML, KML, TML

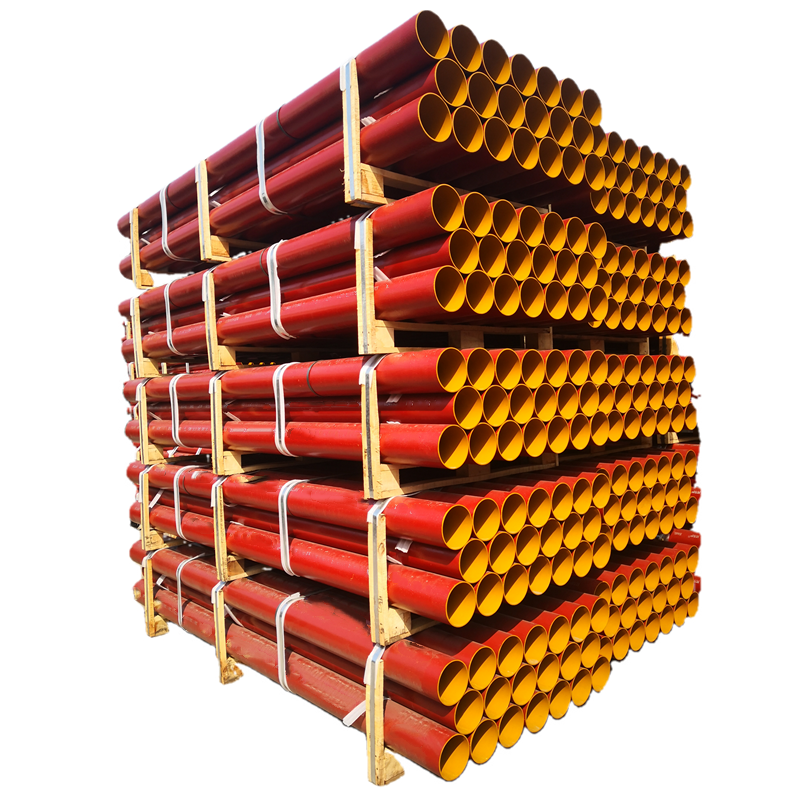

♦SML drainage pipes

SML pipes are widely used for evacuation of water from buildings, drainage, waste and vent. Also rainwater systerm installed outside buildings and buried system underground can be supplied.

Outside coating: red, epoxy with a thickness of not less than 70um.

Inside coating: yellow epoxy resin with a thickness of 120um.

Or inside and outside are more than 120μm powder epoxy coating with red colour.

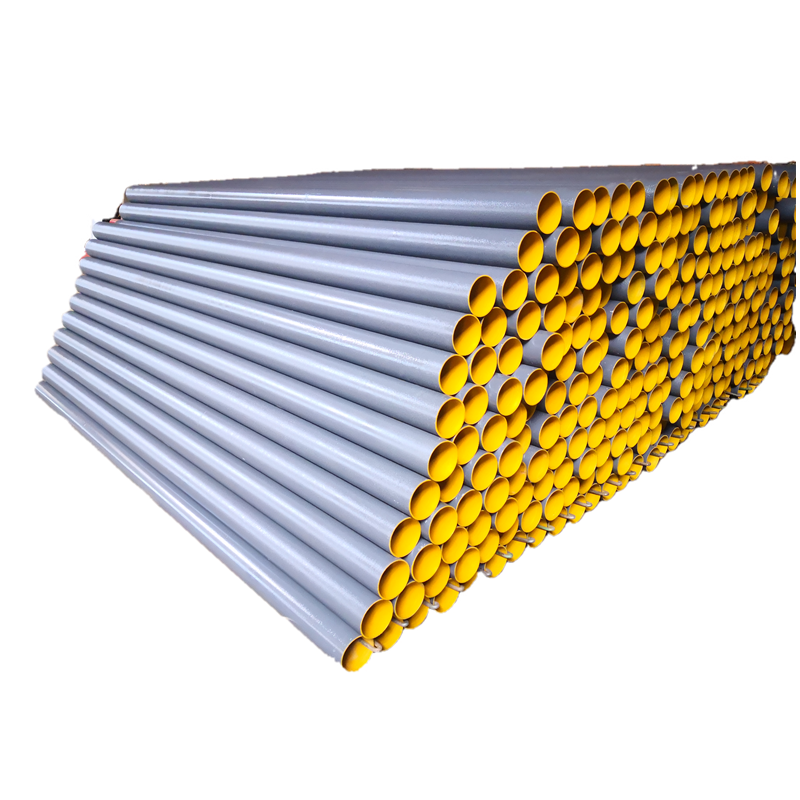

♦BML drainage pipes

BML drainage pipes are for bridge drain system.

Outside coating: zinc coating of at least 40μm layer thickness(290g/m²), covering silver gray epoxy resin coating at least 80μm.

Inside coating: epoxy resin 120μm same as SML pipe.

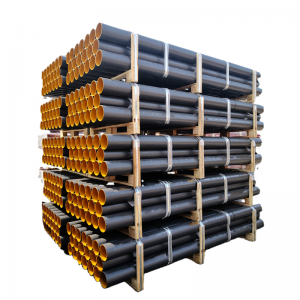

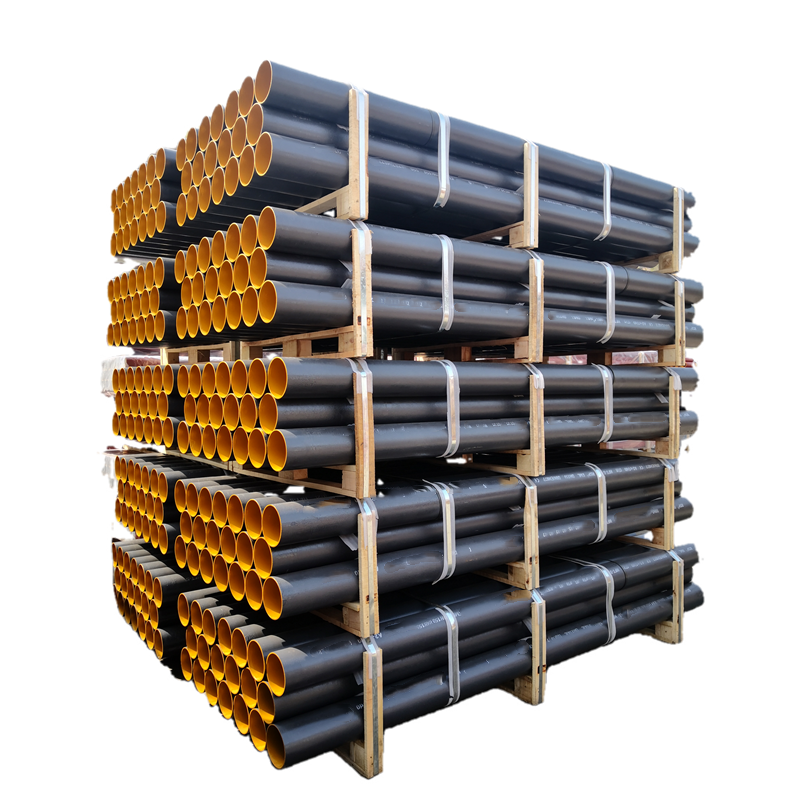

♦KML drainage pipes

KML drainage pipes are used for grease-containing waste water of professional kitchens and similar facilities.

Outside coating: zinc coating with an areal density of min.130g/㎡, covering with epoxy coating of a minimum of 60μm.

Inside coating: orche-coloured epoxy, double layer thickness at least 240μm.

KML fittings are coated inside and outside with a high quality powder epoxy of least 120μm.

♦TML drainage pipes

TML drainage pipes are based on EN877 and used for underground installation.

Outside coating: zinc coating with a density of 130g/㎡, covering with brown or red coating.

Inside coating: orche-coloured epoxy, layer thickness at least 120μm.

Fittings: epoxy powder coating red, 120μm at least.
