Manufacturer of Couplings - Ductile Iron Pipes – Jipeng

Short Description:

Product Detail

Product Tags

Feedback (2)

We have been experienced manufacturer. Wining the majority of your crucial certifications of its market for Sand Casting Pipe Fitting , Ductile Iron Pipe Dn800-1200 , Precision Lost Wax Casting , And there are also a lot of overseas close friends who came for sight seeing, or entrust us to buy other stuff for them. You will be most welcome to come to China, to our city and to our manufacturing facility!

Manufacturer of Couplings - Ductile Iron Pipes – Jipeng Detail:

0401
0402

Overview

Quick Details

Place of Origin: China						Standard:ISO2531/EN545/EN598
Application: Water,gas and oil pipeline						Color: Black,Red,Customized
Coating: Zinc+Bitumen Painting						Marking:OEM or at customers’ requirements
Length: 5.7m,6m,Customized						Size: DN80 to DN2600
Material:Ductile Iron

Packaging & Port

Packaging Details: DN80-DN300 in bundles and DN400-DN2600 in bulk by shipment
Port: Xingang,Tianjin,China

T Type Push-in Joint Socket and Spigot Pipe k9 Class ISO2531:1998(E)

0403

Nominal diameter DN mm	External diameter DE(1) mm	Iron wall thickness,e,K9(2) mm	Average metric mass kg/m
80	98	6.0	12.2
100	118	6.0	15.1
125	144	6.0	18.9
150	170	6.0	22.8
200	222	6.3	30.6
250	274	6.8	40.2
300	326	7.2	50.8
350	378	7.7	63.2
400	429	8.1	75.5
450	480	8.6	89.7
500	532	9.0	104.3
600	635	9.9	137.3
700	738	10.8	173.9
800	842	11.7	215.2
900	945	12.6	260.2
1000	1048	13.5	309.3
1200	1255	15.3	420.1
1400	1462	17.1	547.2
1600	1668	18.9	690.3
1800	1875	20.7	850.1
2000	2082	22.5	1026.3
2200	2288	24.3	1218.3
2400	2495	26.1	1427.2
2600	2702	27.9	1652.4
(1):A tolerance of+1mm applies. ((2):The tolerance on nominal iron wall thickness are as folloW, E=6mm,tolerance is-1.3mm E>6mm,tolerance is-(1.3+0.001DN) Remark:The working length could be 6.0M or 5.7M for 20′container shipment.

T Type Push-in Joint Socket and Spigot Pipe C Class ISO2531:2010(E)

0403

Nominal diameter DN mm	External diameter DE(a) mm	Pressure class	Nominal iron wall thickness e mm
80	98	C40	4.4
100	118	C40	4.4
125	144	C40	4.5
150	170	C40	4.5
200	222	C40	4.7
250	274	C40	5.5
300	326	C40	6.2
350	378	C30	6.3
400	429	C30	6.5
450	480	C30	6.9
500	532	C30	7.5
600	635	C30	8.7
700	738	C25	8.8
800	842	C25	9.6
900	945	C25	10.6
1000	1048	C25	11.6
1200	1255	C25	13.6
1400	1462	C25	15.7
1600	1668	C25	17.7
1800	1875	C25	19.7
2000	2082	C25	21.8
2200	2288	C25	23.8
2400	2495	C25	25.8
2600	2702	C25	27.9
(a):A tolerance of+1mm applies Remark:The working length could be 6.0M or 5.7M for 20′container shipment.

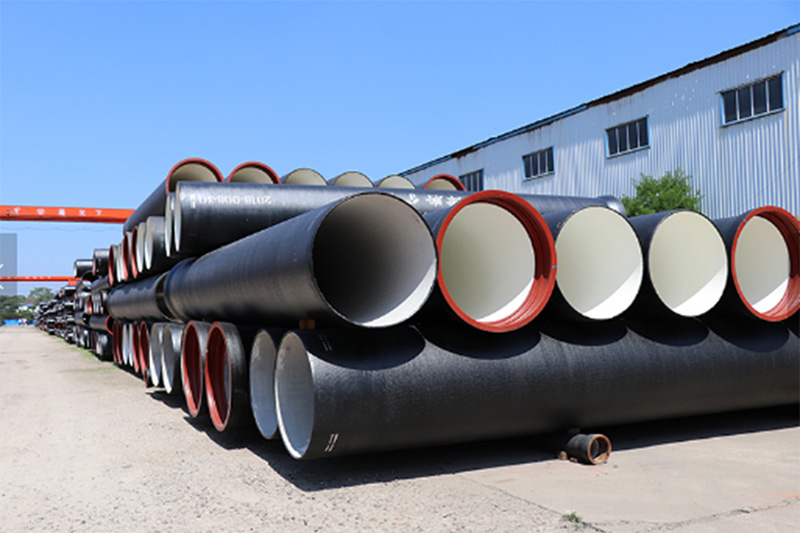

Inspection Photo

0404

Product detail pictures:

Related Product Guide:

With our rich working experience and thoughtful companies, we have now been recognized as being a trustworthy supplier for a lot of global potential buyers for Manufacturer of Couplings - Ductile Iron Pipes – Jipeng, The product will supply to all over the world, such as: Hamburg, Tunisia, Madras, Our staffs are rich in experience and trained strictly, with qualified knowledge, with energy and always respect their customers as the No. 1, and promise to do their best to deliver the effective and individual service for customers. The Company pays attention to maintaining and developing the long-term cooperation relationship with the customers. We promise, as your ideal partner, we'll develop a bright future and enjoy the satisfying fruit together with you, with persisting zeal, endless energy and forward spirit.

The company has a good reputation in this industry, and finally it tured out that choose them is a good choice.

By Alexander from Brasilia - 2017.02.28 14:19

The sales manager has a good English level and skilled professional knowledge, we have a good communication. He is a warm and cheerful man, we have a pleasant cooperation and we became very good friends in private.

By Meroy from Vietnam - 2017.03.08 14:45
