EN877 SML Hubless Cast Iron Pipe

Short Description:

The SML no-hub cast iron drainage pipes and fittings meet the standard of BSEN877, DIN19522, ISO6594. The materials are 100% reusable and recyclable, with low sound transmission, fire proof, leak proof and anti-corrosive. They are widely used for evacuation of water from buildings, drainage, waste and vent. Also rainwater systerm installed outside buildings and buried system underground can be supplied.

The EN877pipes outside coating is red, epoxy with a thickness of not less than 70um. Inside coating is yellow epoxy resin with a thickness of 120um. Or inside and outside are more than 120μm powder epoxy coating with red colour.

The fittings are also red inside and outside, liquid epoxy resin is over 70um, and powder epoxy is over 120um thick.


Product Detail

Product Tags

048dc3b7

Overview

Quick Details

Place of Origin: Shijiazhuang ,China    Standard: BS EN877/DIN 19522/ISO 6594
Application:For waste water drainage Color:Outside red,Internal yellow or orche
Coating: Epoxy Resin Paints&Powder epoxy Coating Marking:OEM or M-Tub or at customers' requirements
Material: Gray cast Iron Size: DN40 to DN300
Length: 3m

Packing & Shipping:

Packaging Details: Wooden pallet

Port: Xingang,Tianjin,China

Drawing:

d29ad2a3
Nominal size DN Outside diameter Wall thickness   L /mm
Nominal value Tolerance Nominal value Mininum value
40 48 ﹢2﹣1 3.0 2.5 3000±20
50 58 3.5 3.0
70 78 3.5 3.0
75 83 3.5 3.0
100 110 3.5 3.0
125 135 ﹢2﹣2 4.0 3.5
150 160 4.0 3.5
200 210 ﹢2.5    ﹣2.5 5.0 4.0
250 274 5.0 4.5
300 326 6.0 5.0

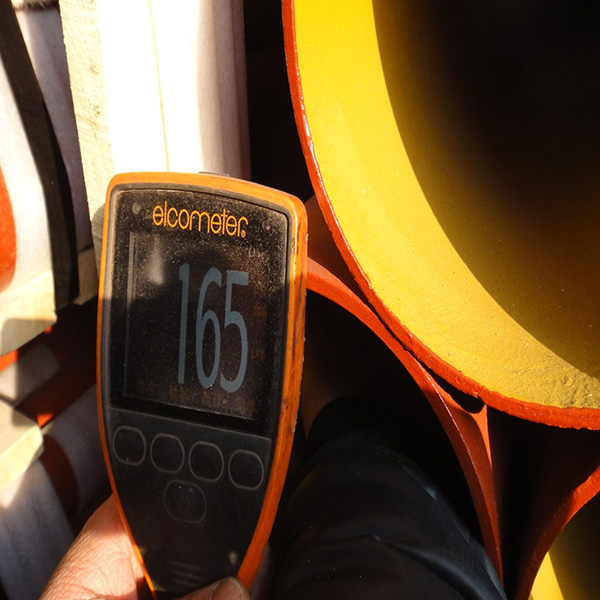

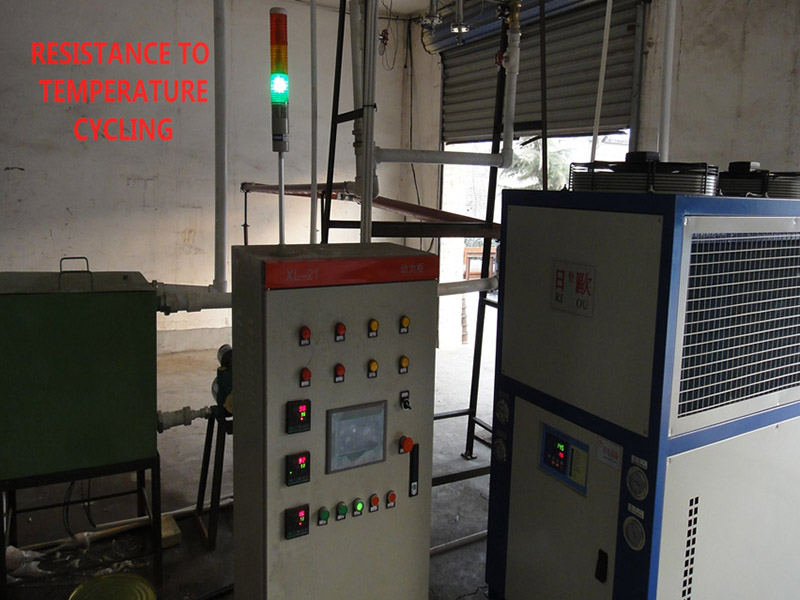

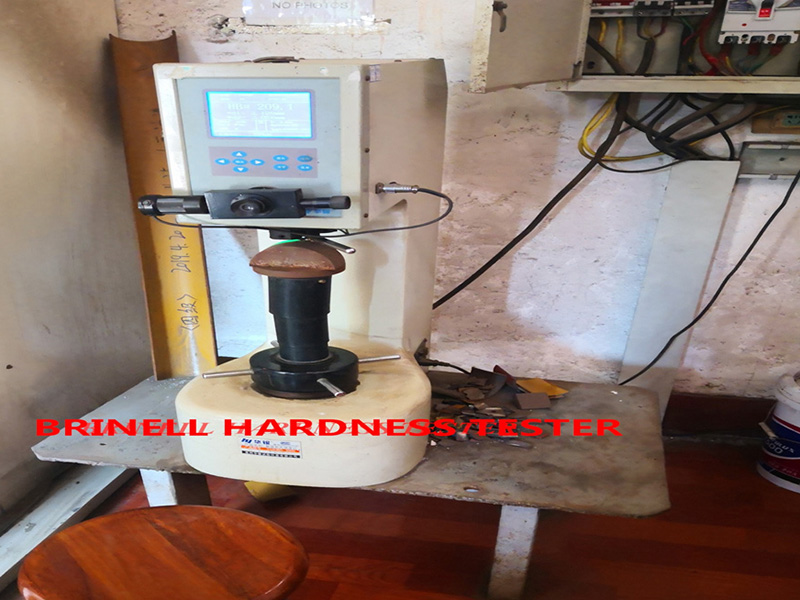

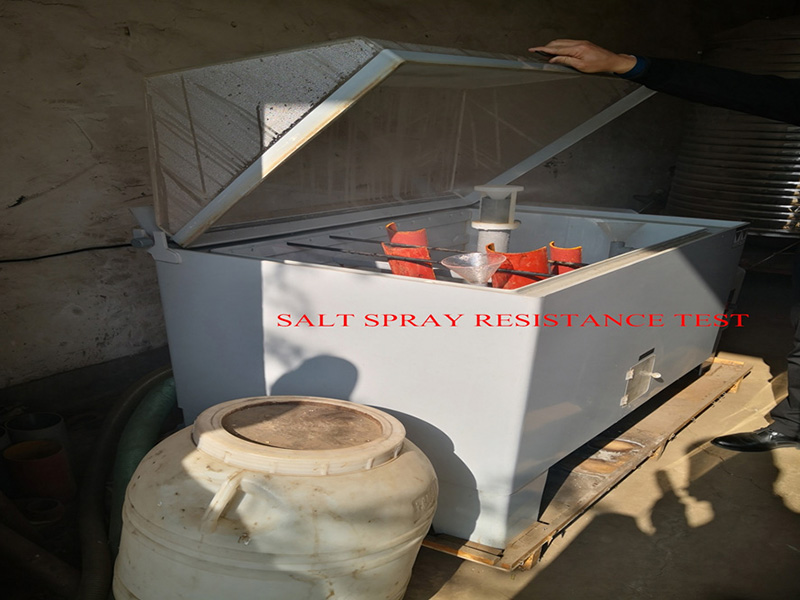

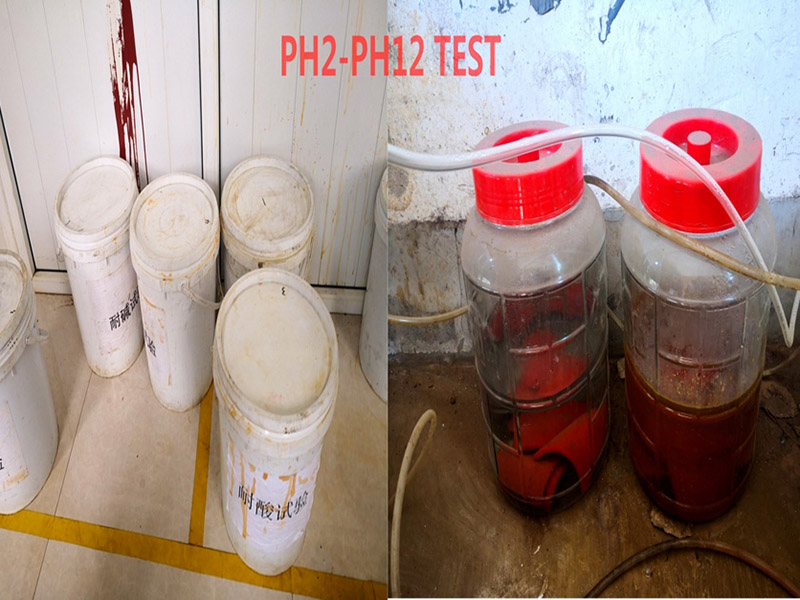

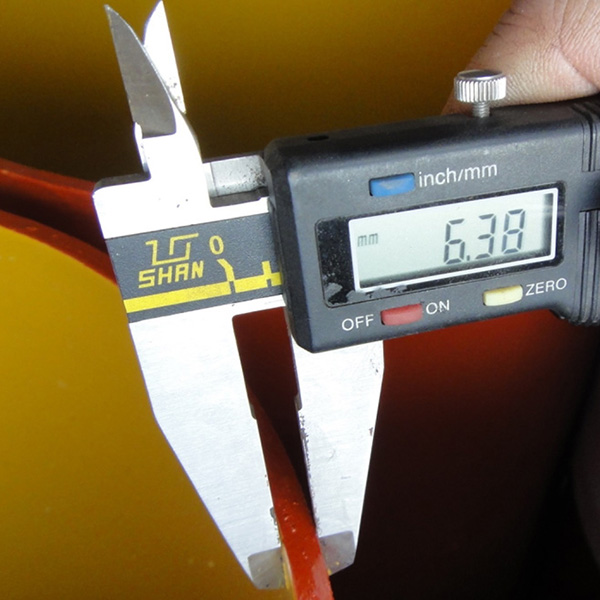

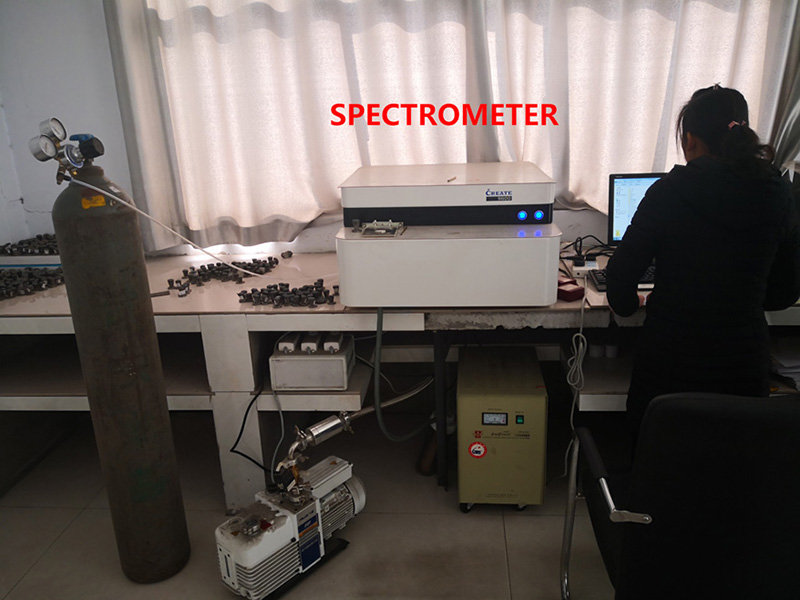

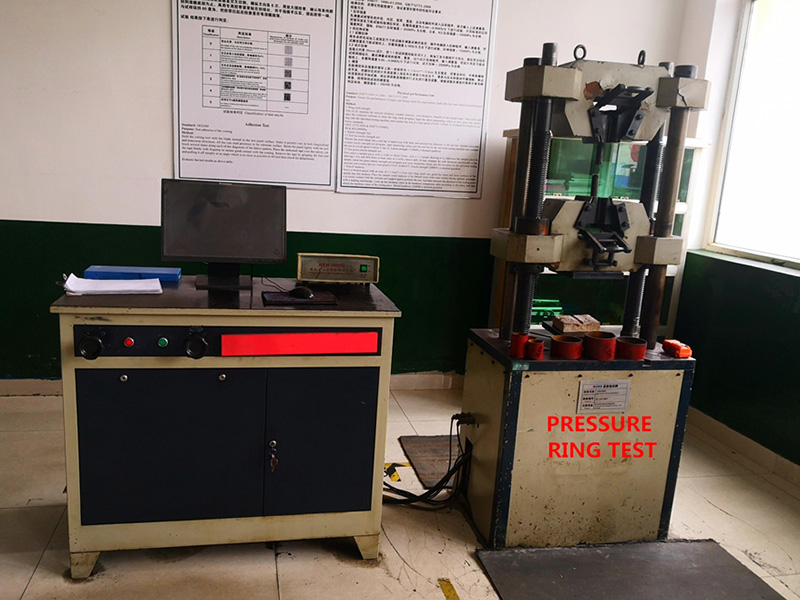

Inspection Photo

Certification:

en877
