Access Door

Access Door Featured Image
  • Access Door
  • Access Door
  • Access Door

Short Description:

SML EN877 CAST IRON PIPE FITTINGS for building drainage

Access Door

Standard: BS EN877/DIN 19522/ISO6594

Material: gray cast iron ISO185

Coating: Epoxy Resin Paint&Powder epoxy

Colour: red or gray

Marking: OEM or M-Tub or at customers’ requirements

Place of origin: China

Application: Water drainage

Tensile strength min.150Mpa

Maximum brinell hardness HB260

Internal coating resistance to salt spray: at least 350h, common 700 hours. resistance to waster water: at least 30 days at 23℃.

chemical resistance from PH2 to PH12 at least 30 days at 23 ℃.

resistance to temperature cycling: 1500 cycles between to 15-93℃.


Download as PDF

Product Detail

Product Tags

Type

88° Single Branch with Access Door

QQ截图20220323162934
DIA. X1 X2 X3 L
mm mm mm mm mm
50 x 50 79 81 66 145
75 x 50 95 90 86 181
75 x 75 130 130 90 220
100 x 100 170 150 104 274
150 x 50 150 130 140 290
150 x 100 140 151 140 280
150 x 150 210 190 140 350
200 x 150 185 185 165 350
200 x 200 194 201 181 375
250 x 150 212 224 224 436
250 x 200 212 233 224 436
250 x 250 244 241 224 468
300 x 200 265 263 250 515
300 x 250 265 270 250 515
300 x 300 277 278 263 540

45° Single Branch with Access Door

QQ截图20220323162909
DIA. X1 X2 X3 L
mm mm mm mm mm
50 x 50 51 135 135 186
75 x 50 50 140 140 190
75 x 75 66 160 160 226
100 x 50 35 165 165 200
100 x 75 55 175 180 230
100 x 100 70 205 205 275
150 x 75 58 228 212 286
150 x 100 55 240 240 295
150 x 150 90 265 265 355
200 x 100 65 285 260 350
200 x 150 75 300 300 375
200 x 200 115 340 340 455
250 x 250 130 430 430 560
300 x 200 82 428 440 510
300 x 300 155 505 505 660

88° Short Bend with Access Door

QQ截图20220323162901
DIA. X
mm mm
50 75
75 95
100 112
100 153
150 148
200 180
250 220
300 260

45° Short Bend with Access Door

QQ截图20220323162852
DIA. X
mm mm
50 75
75 95
100 112
100 153
150 148
200 180
250 220
300 260

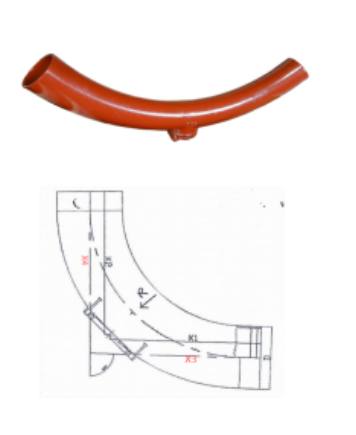

88° Long Radius Bend with Access Door

QQ截图20220323162838
Internal Diameter(D) Radius(R) Cleaning Eye X1 X3 X4
mm mm
100 200 100 217.1 233.1 233.1
100 600 100 495 620 620
150 600 150 522.4 630 630
200 600 200 550 640 640
150 300 150 314 340 340
200 400 200 410.8 447 447
250 600 260 582 650 650
300 600 310 610 660 660

Certification:

en877
