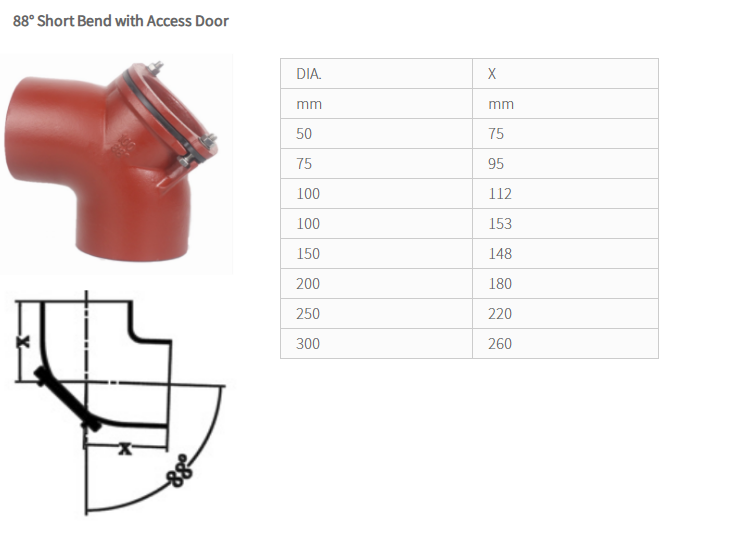

88° Short Bend with Access Door

Short Description:

SML EN877 CAST IRON PIPE FITTINGS for building drainage

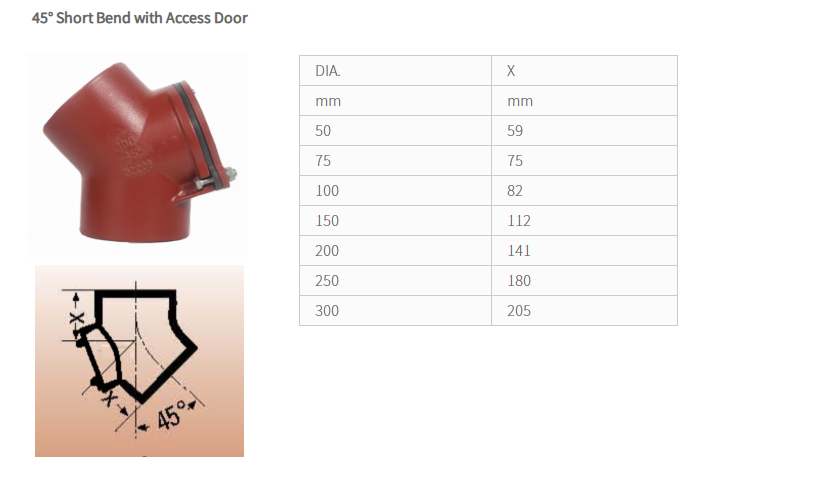

45° Short Bend with Access Door          88° Short Bend with Access Door

45° Single Branch with Access Door     88° Single Branch with Access Door

88° Long Radius Bend with Access Door

Standard: BS EN877/DIN 19522/ISO6594

Material: gray cast iron ISO185

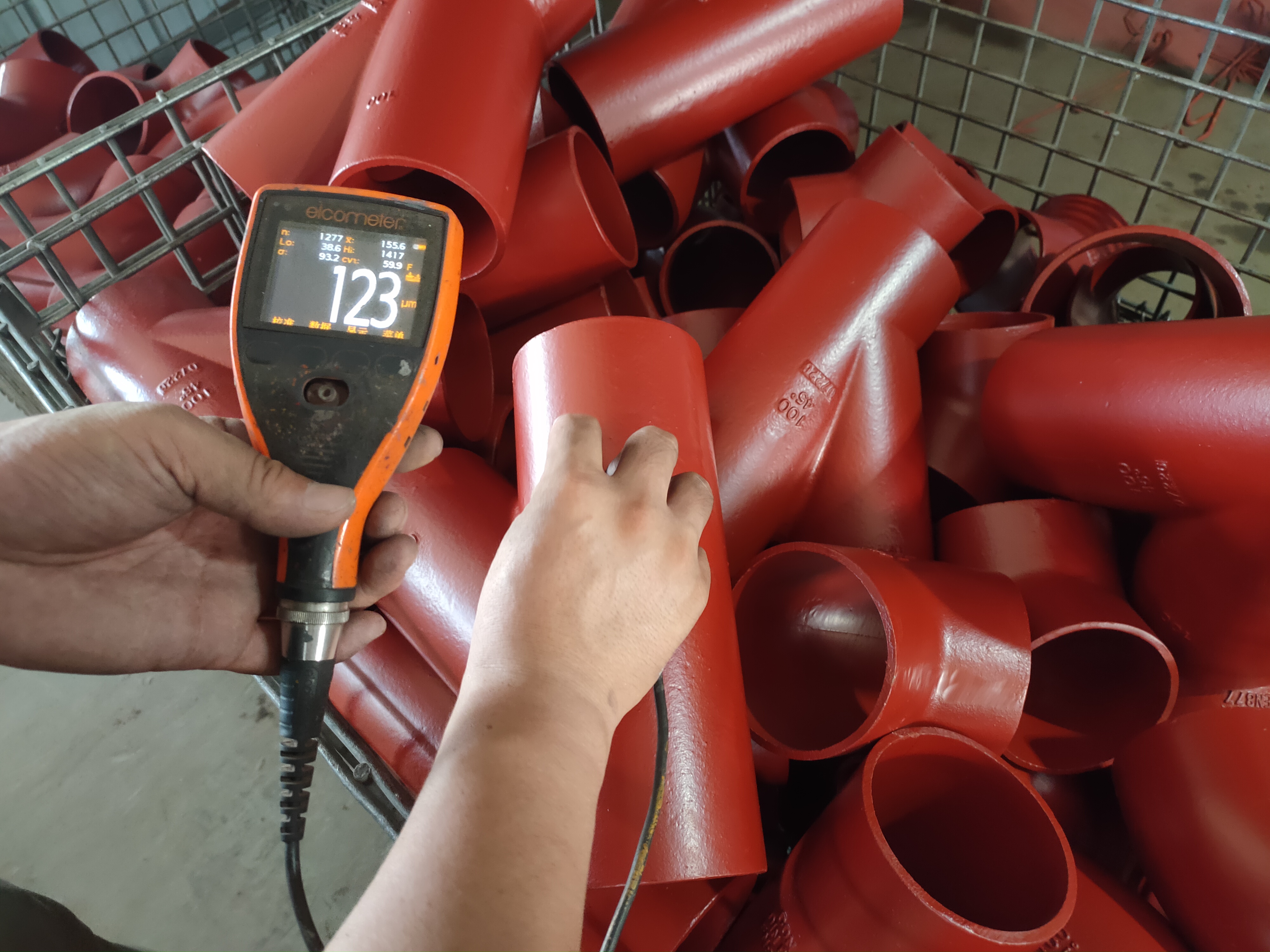

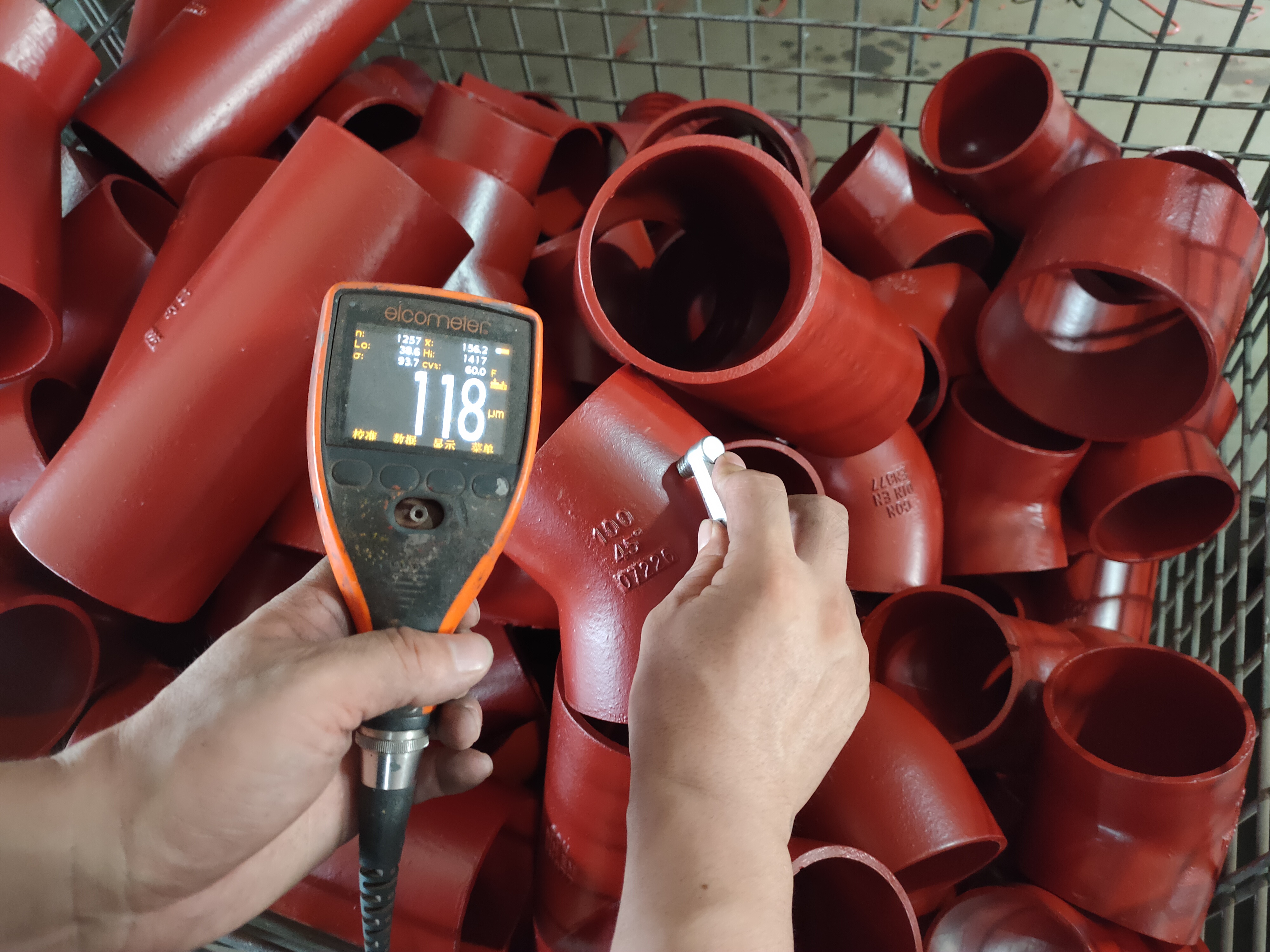

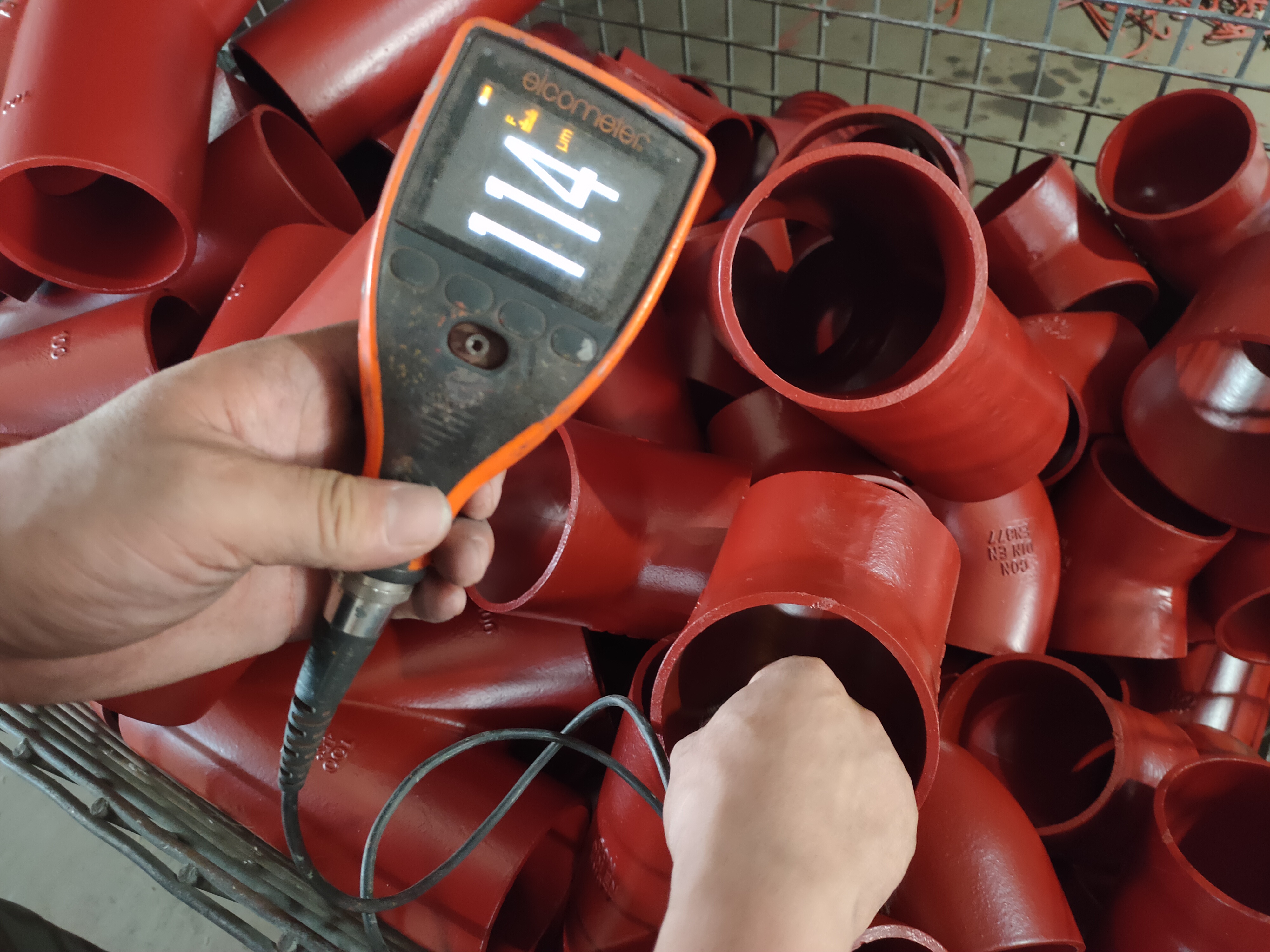

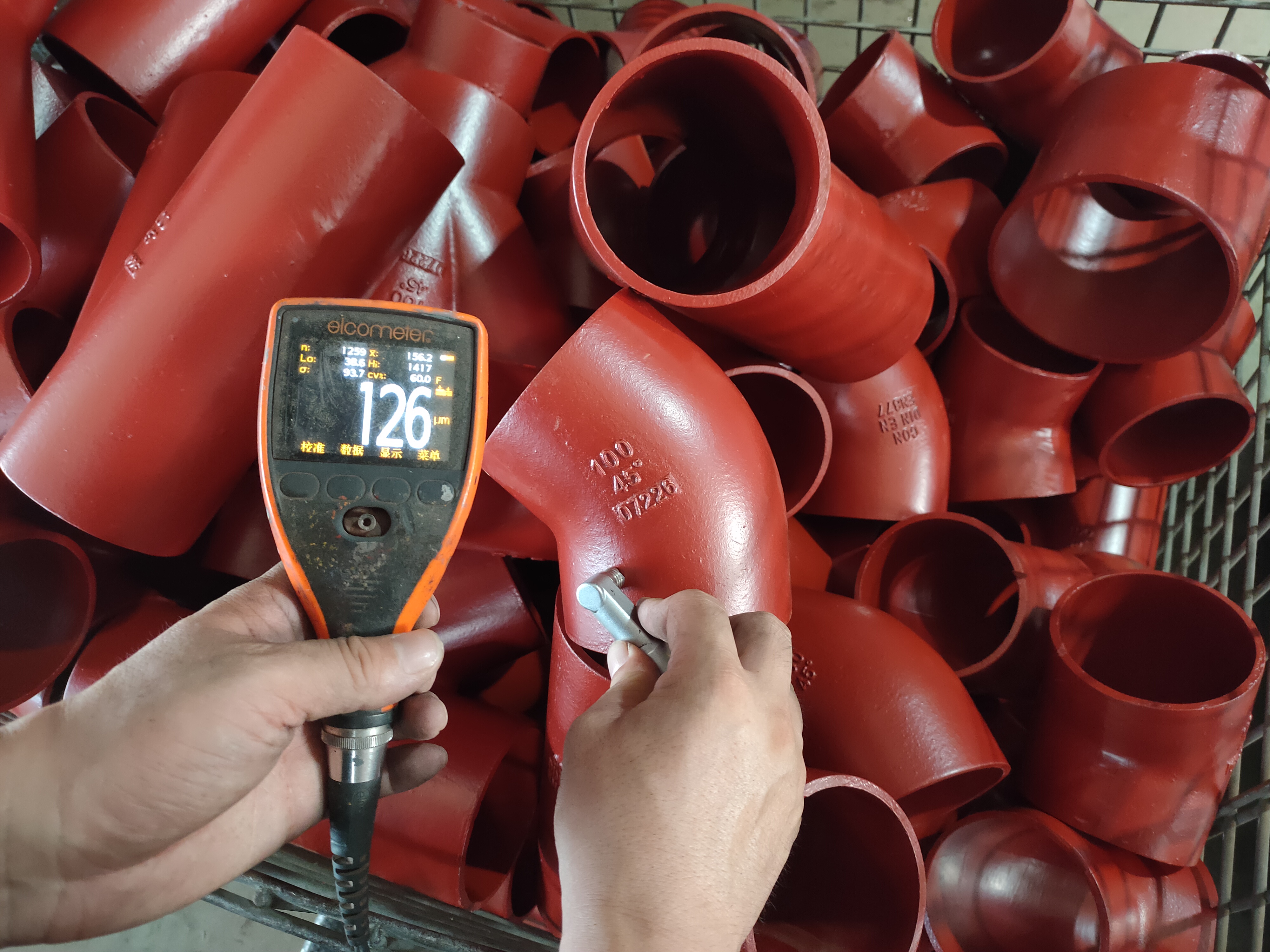

Coating: Epoxy Resin Paint&Powder epoxy

Colour: red or gray

Marking: OEM or M-Tub or at customers’ requirements

Place of origin: China

Application: Water drainage

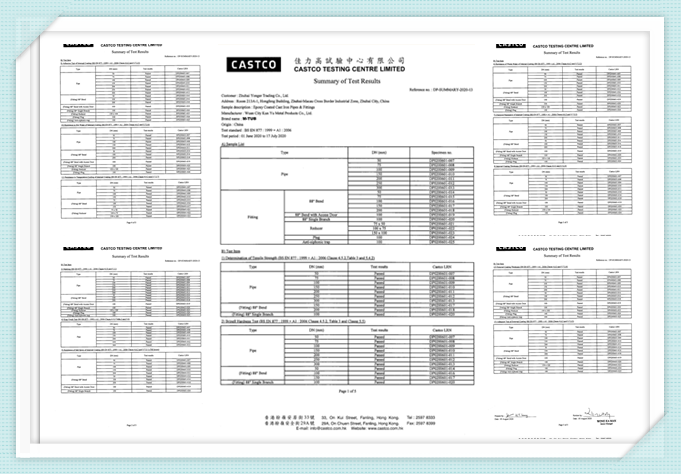

Tensile strength min.150Mpa

Maximum brinell hardness HB260

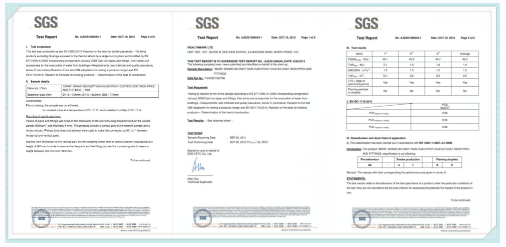

Internal coating resistance to salt spray: at least 350h, common 700 hours. resistance to waster water: at least 30 days at 23℃.

chemical resistance from PH2 to PH12 at least 30 days at 23 ℃.

resistance to temperature cycling: 1500 cycles between to 15-93℃.
